Whether you're milling, turning, boring or threading, North Shore Tooling Supplies has a range of carbide inserts to suit your needs. We stock many different sizes, shapes and grades to help you achieve the best results for your tasks.

If you're in need of a specific insert, or after general advice, please get in touch with our team.


Sub Categories

Milling Parting Off Threading Turning & Boring

Search Products Search Products

Milling | CCGT060204D

Milling | CCGT060204D
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT060204D

  • Style: CCGT060204D
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For machining of hardened steel materials.

Enquire about this product

Milling | CCGT060204P

Milling | CCGT060204P
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT060204P

  • Style: CCGT060204P
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For prolonged machining on non-ferrous materials.







Enquire about this product

Milling | CCGT060208D

Milling | CCGT060208D
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT060208D

  • Style: CCGT060208D
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For machining of hardened steel materials.



Enquire about this product

Turning & Boring | CCGT060204D

Turning & Boring | CCGT060204D
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT060204D

  • Style: CCGT060204D
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For machining of hardened steel materials.

Enquire about this product

Turning & Boring | CCGT060204P

Turning & Boring | CCGT060204P
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT060204P

  • Style: CCGT060204P
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For prolonged machining on non-ferrous materials.







Enquire about this product

Turning & Boring | CCGT060208D

Turning & Boring | CCGT060208D
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT060208D

  • Style: CCGT060208D
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For machining of hardened steel materials.



Enquire about this product

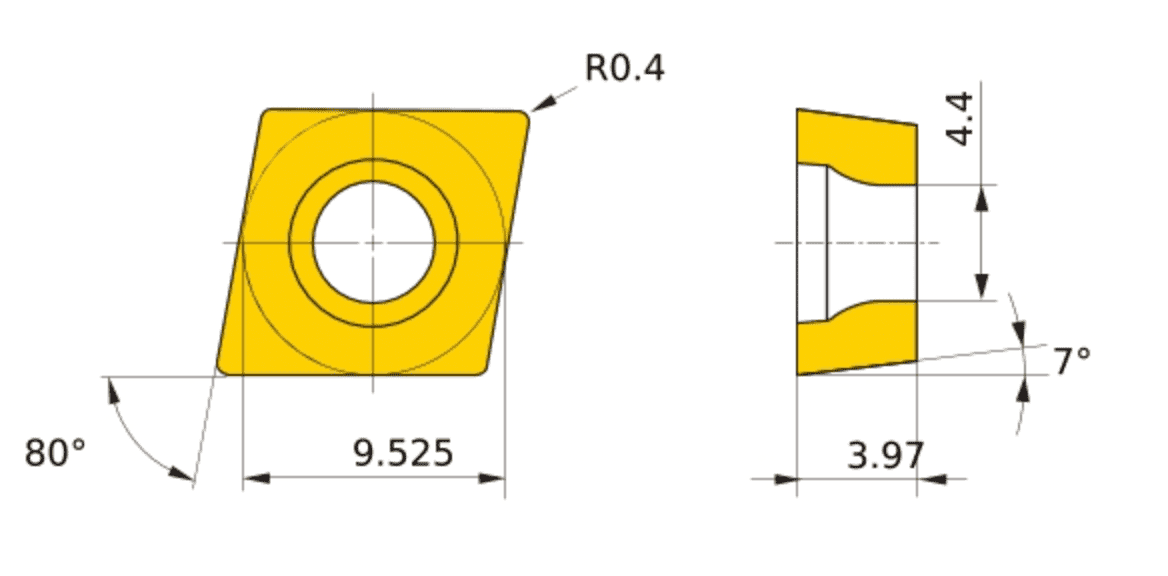

Turning & Boring | CCGT09T304D

Turning & Boring | CCGT09T304D
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT09T304D

  • Style: CCGT09T304D
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 80°
For machining of hardened steel materials.



Enquire about this product

Turning & Boring | CCGT09T304P

Turning & Boring | CCGT09T304P
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 CCGT09T304P

  • Style: CCGT09T304P
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 80°
For prolonged machining on non-ferrous materials.



Enquire about this product

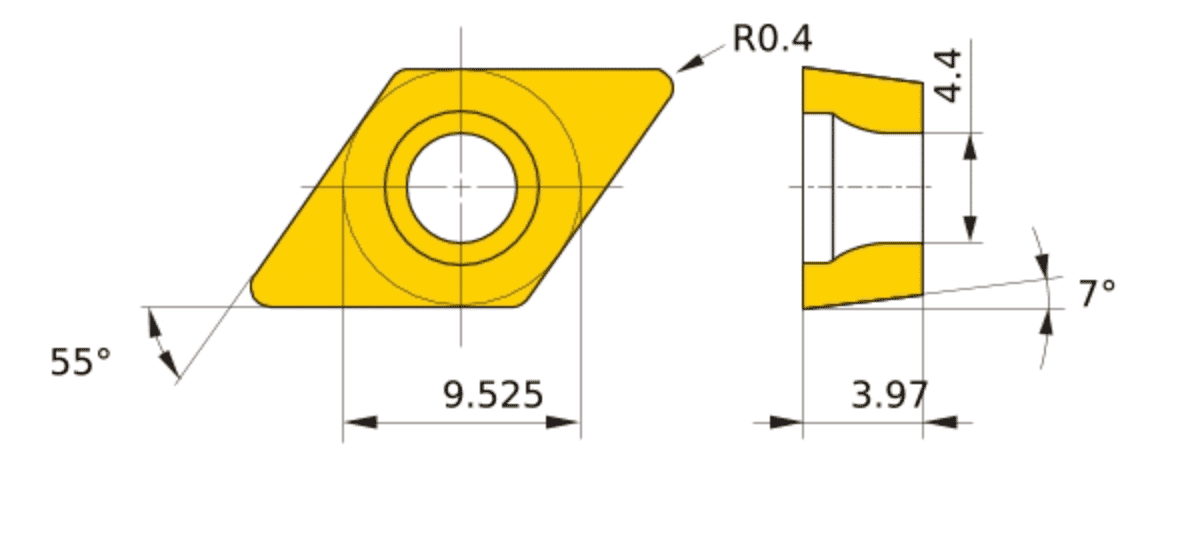

Turning & Boring | DCGT11T304D

Turning & Boring | DCGT11T304D
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 DCGT11T304D

  • Style: DCGT11T304D
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 55°
For machining of hardened steel materials.




Enquire about this product

Turning & Boring | DCGT11T304P

Turning & Boring | DCGT11T304P
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 DCGT11T304P

  • Style: DCGT11T304P
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 55°
For prolonged machining on non-ferrous materials.




Enquire about this product

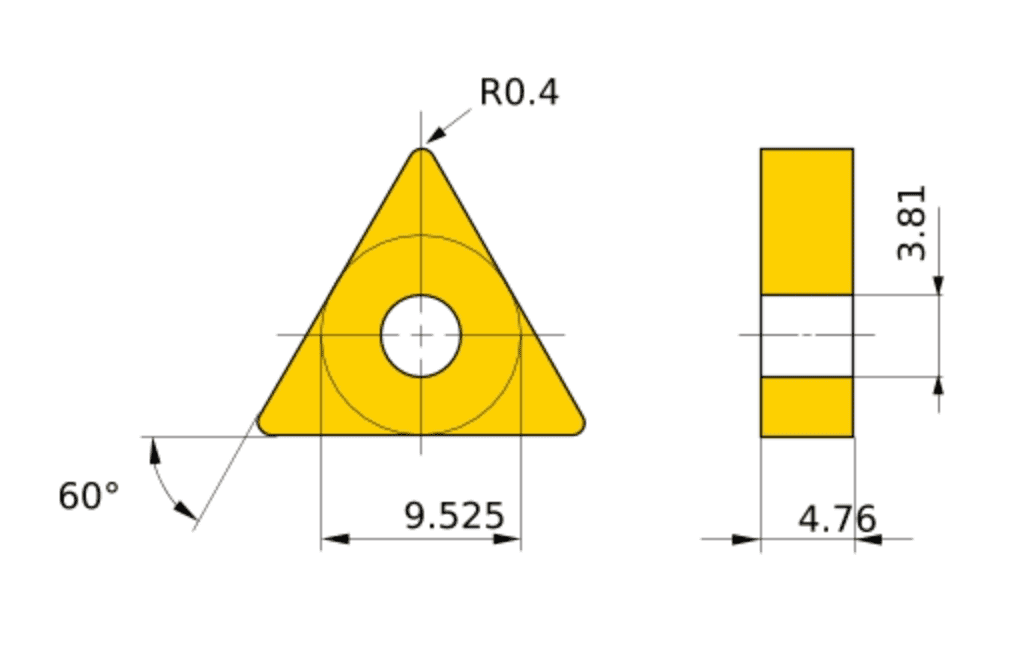

Turning & Boring | TNMG160404P

Turning & Boring | TNMG160404P
More Info..|Enquire about this product

$25.00 NZD
Approx $14.85 USD Excl GST Product Code: 915 TNMG160404P

  • Style: TNMG160404P
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 60°
For prolonged machining on non-ferrous materials.


Enquire about this product

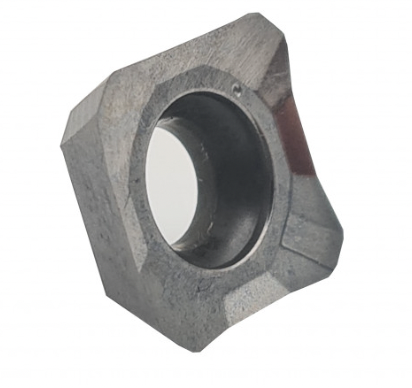

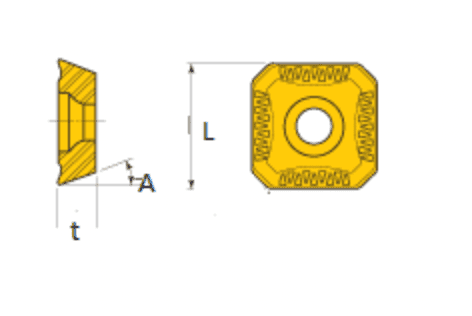

Milling | SEHT1204

Milling | SEHT1204
More Info..|Enquire about this product

$16.50 NZD
Approx $9.80 USD Excl GST Product Code: 915 5500

  • Style: SEHT1204
  • Length: 12.7mm
  • Depth: Insert thickness - 4.79mm

Description:

For general purpose machining.
A - Side clearance - 20°


Enquire about this product

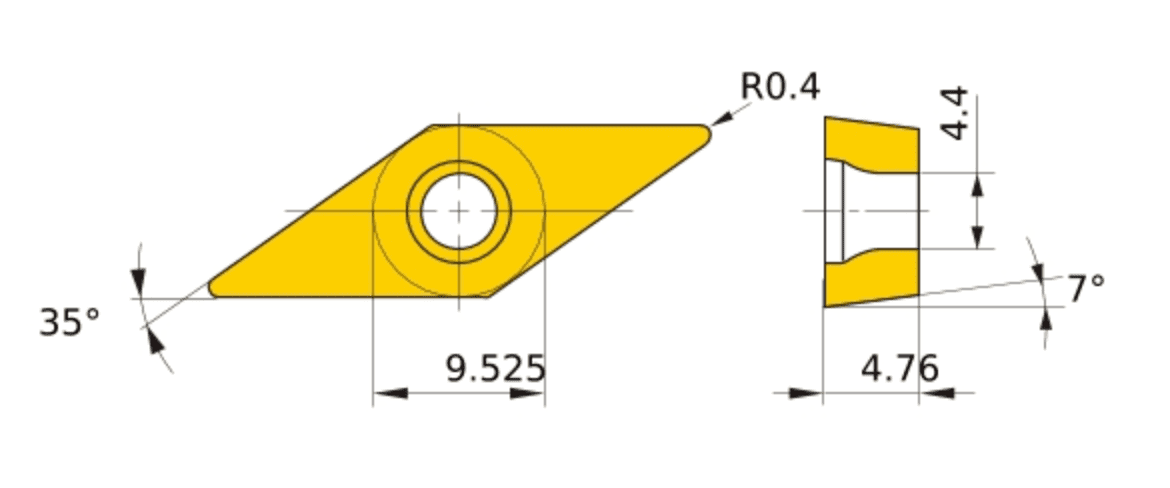

Turning & Boring | VCGT160404

Turning & Boring | VCGT160404
More Info..|Enquire about this product

$16.50 NZD
Approx $9.80 USD Excl GST Product Code: 915 VCGT160404

  • Style: VCGT160404
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 35°
For general machining on aluminium and non-ferrous materials.




Enquire about this product

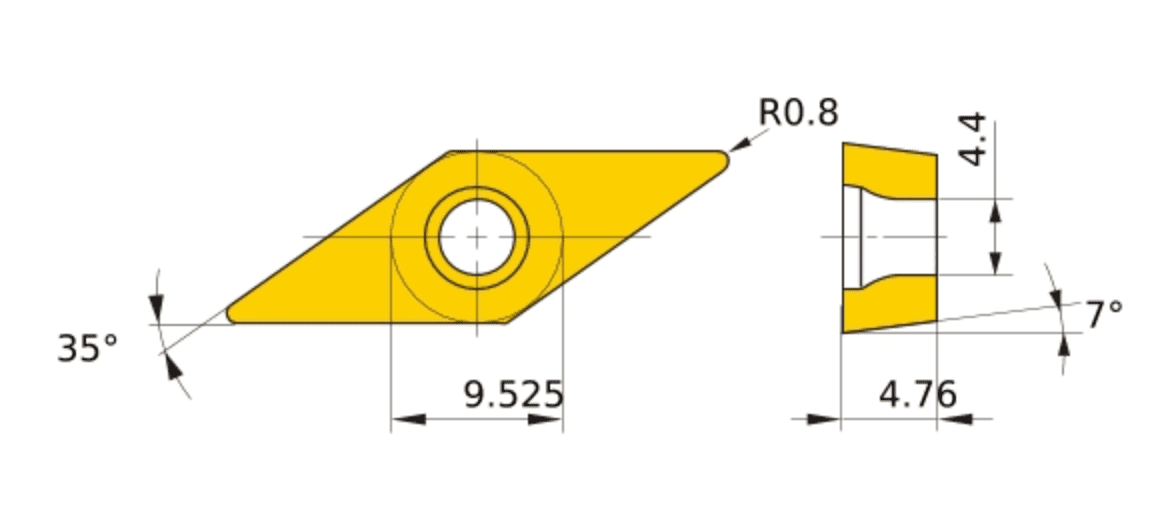

Turning & Boring | VCGT160408

Turning & Boring | VCGT160408
More Info..|Enquire about this product

$16.50 NZD
Approx $9.80 USD Excl GST Product Code: 915 VCGT160408

  • Style: VCGT160408
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 35°
For general machining on aluminium and non-ferrous materials.





Enquire about this product

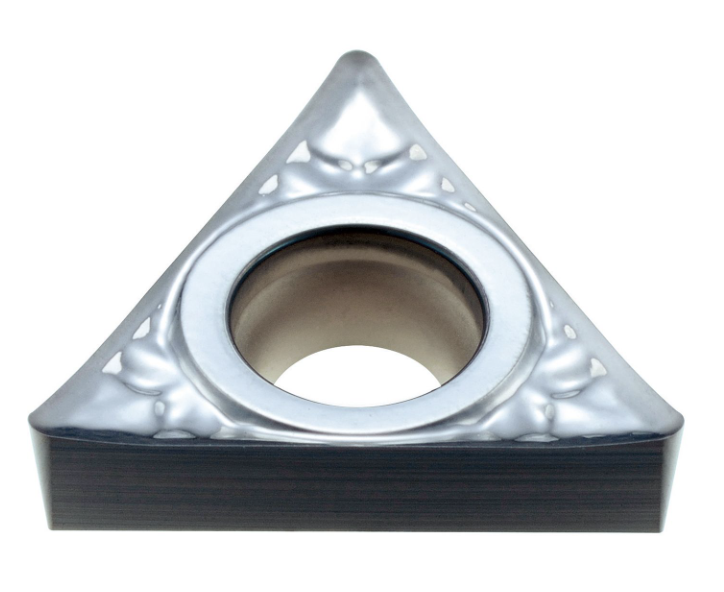

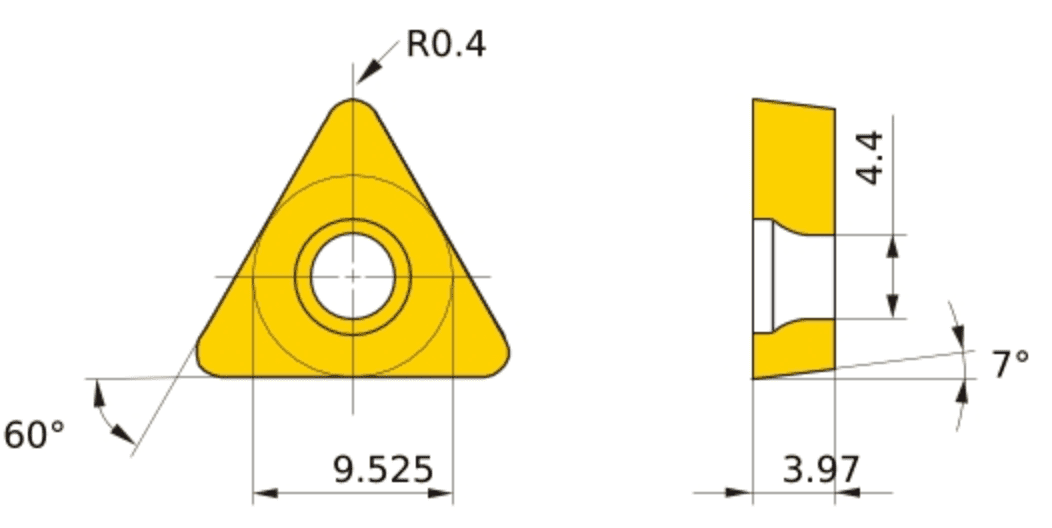

Turning & Boring | TCGT16T304

Turning & Boring | TCGT16T304
More Info..|Enquire about this product

$15.80 NZD
Approx $9.38 USD Excl GST Product Code: 915 TCGT16T304

  • Style: TCGT16T304
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 60°
For general machining on aluminium and non-ferrous materials.

Enquire about this product

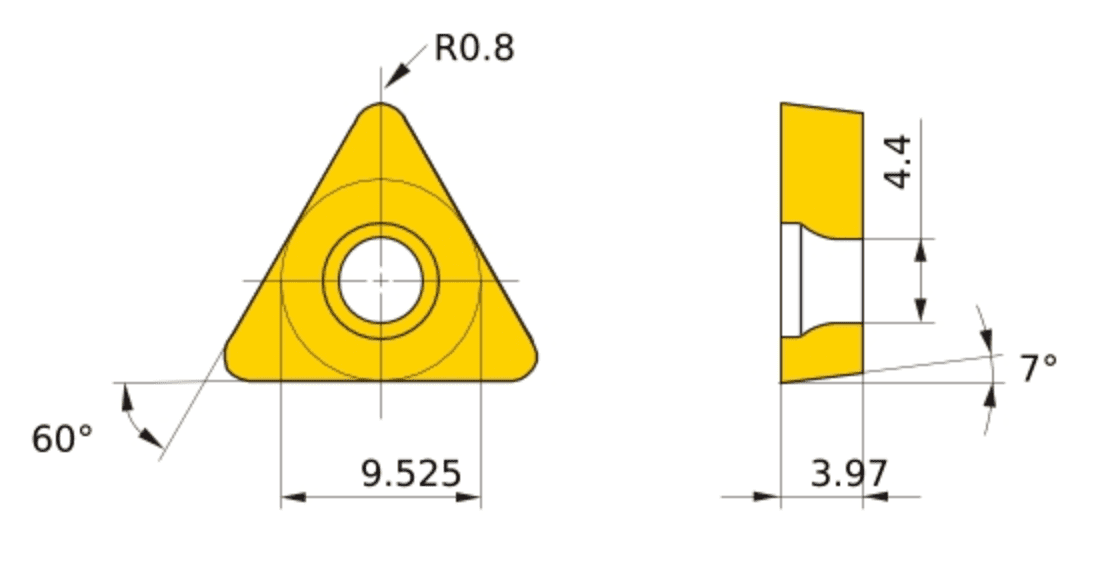

Turning & Boring | TCGT16T308

Turning & Boring | TCGT16T308
More Info..|Enquire about this product

$15.80 NZD
Approx $9.38 USD Excl GST Product Code: 915 TCGT16T308

  • Style: TCGT16T308
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 60°
For general machining on aluminium and non-ferrous materials.

Enquire about this product

Milling | APKT1604

Milling | APKT1604
More Info..|Enquire about this product

$15.54 NZD
Approx $9.23 USD Excl GST Product Code: 915 5512

  • Style: APKT1604
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 5.25mm

Description:

For general purpose machining.

Enquire about this product

Threading External | 16ERAG55

Threading External | 16ERAG55
More Info..|Enquire about this product

$15.54 NZD
Approx $9.23 USD Excl GST Product Code: 915 5551

  • Style: 16ERAG55
  • Size: 55 Degree Partial Profile External Threading Insert
  • TPI: Covers 8 - 48 TPI
  • Thread: External

Description:

55 Degree Partial Profile External Threading Insert.
Covers the range from 0.5 - 3.0mm Pitch and 8 - 48 TPI.

Enquire about this product

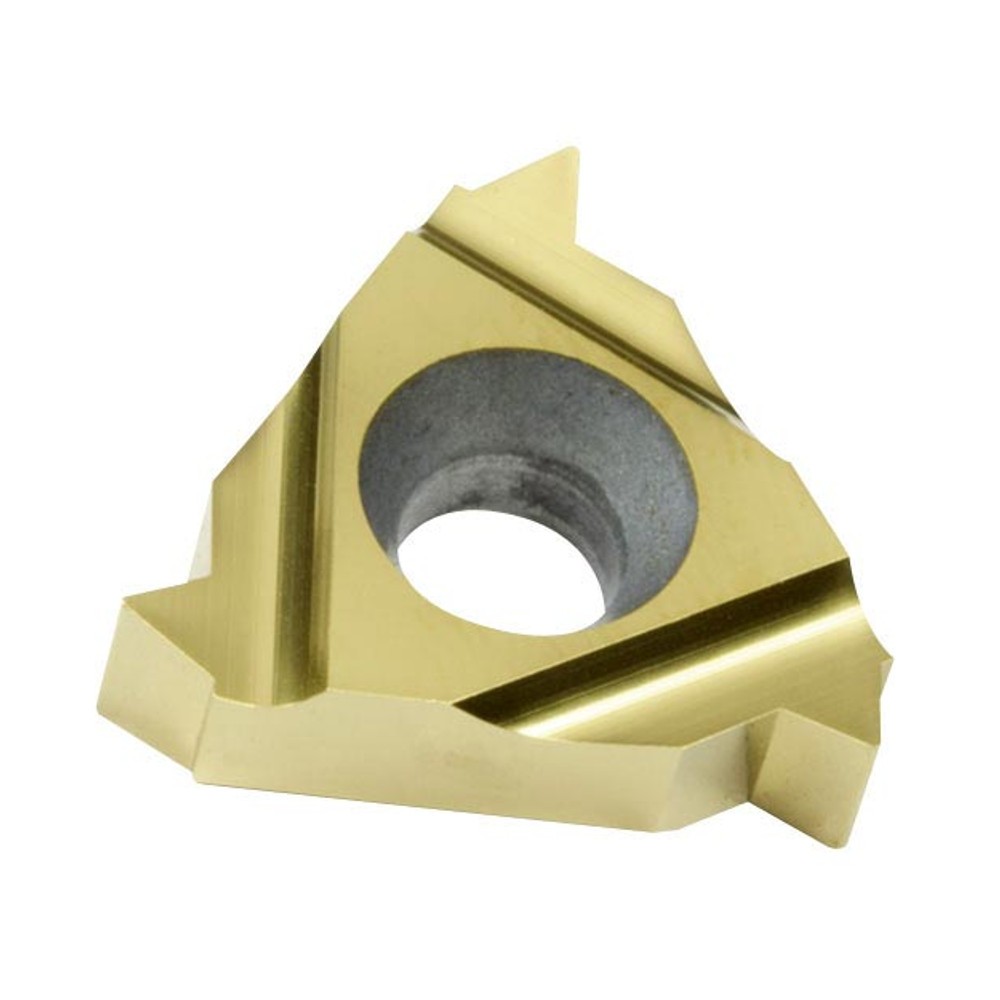

Threading External | 16ERAG60

Threading External | 16ERAG60
More Info..|Enquire about this product

$15.54 NZD
Approx $9.23 USD Excl GST Product Code: 915 5550

  • Style: 16ERAG60
  • Size: 60 Degree Partial Profile External Threading Insert
  • TPI: Covers 0.5-3.00mm
  • Thread: External

Description:

60 Degree Partial Profile External Threading Insert.
Covers the range from 0.5 - 3.0mm Pitch and 8 - 48 TPI.

Enquire about this product

Threading Internal | 16NRAG55

Threading Internal | 16NRAG55
More Info..|Enquire about this product

$15.54 NZD
Approx $9.23 USD Excl GST Product Code: 915 5553

  • Style: 16NRAG55
  • Size: 55 Degree Partial Profile Internal Threading Insert
  • TPI: Covers 8 - 48 TPI
  • Thread: Internal

Description:

55 Degree Partial Profile Internal Threading Insert.
Covers the range from 0.5 - 3.0mm Pitch and 8 - 48 TPI.

Enquire about this product

Threading Internal | 16NRAG60

Threading Internal | 16NRAG60
More Info..|Enquire about this product

$15.54 NZD
Approx $9.23 USD Excl GST Product Code: 915 5552

  • Style: 16NRAG60
  • Size: 60 Degree Partial Profile Internal Threading Insert
  • TPI: Covers 0.5-3.00mm
  • Thread: Internal

Description:

60 Degree Partial Profile Internal Threading Insert.
Covers the range from 0.5 - 3.0mm Pitch and 8 - 48 TPI.

Enquire about this product

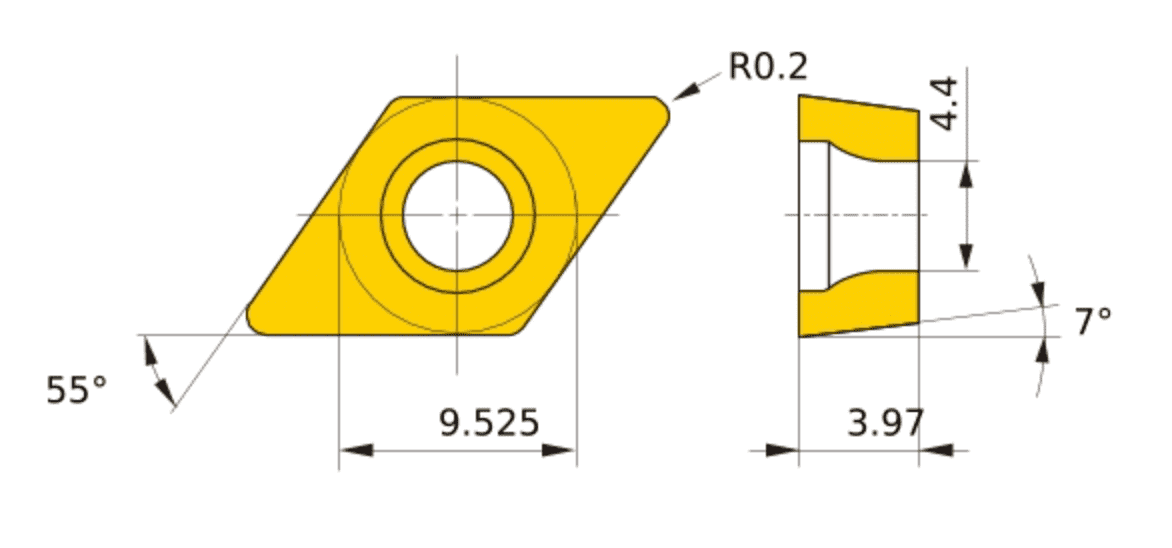

Turning & Boring | DCGT11T302

Turning & Boring | DCGT11T302
More Info..|Enquire about this product

$14.50 NZD
Approx $8.61 USD Excl GST Product Code: 915 DCGT11T302

  • Style: DCGT11T302
  • Size: Corner radius - 0.2mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 55°
For general machining on aluminium and non-ferrous materials.



Enquire about this product

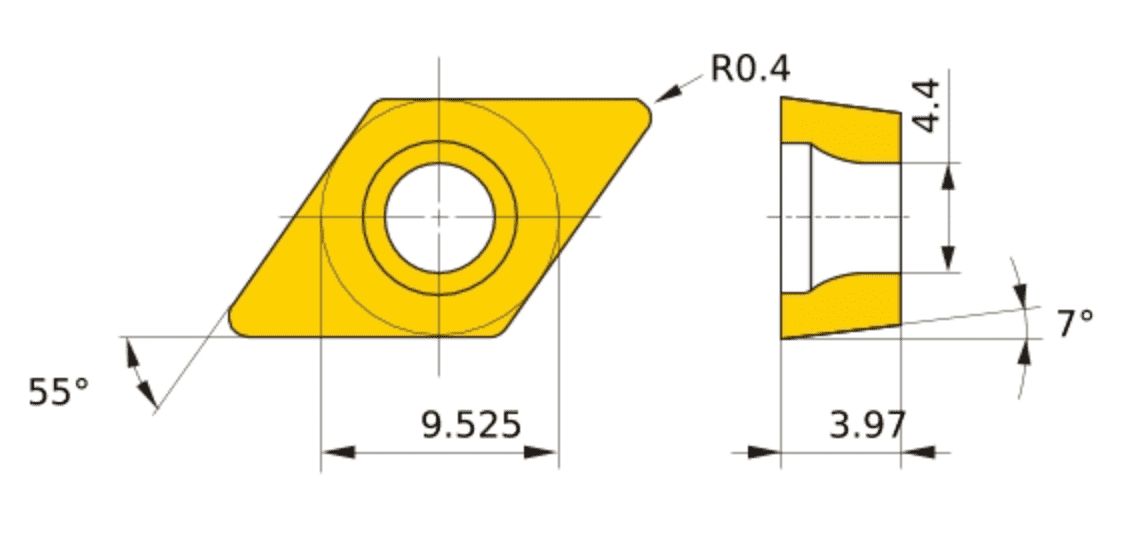

Turning & Boring | DCGT11T304

Turning & Boring | DCGT11T304
More Info..|Enquire about this product

$14.50 NZD
Approx $8.61 USD Excl GST Product Code: 915 DCGT11T304

  • Style: DCGT11T304
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 55°
For general machining on aluminium and non-ferrous materials.




Enquire about this product

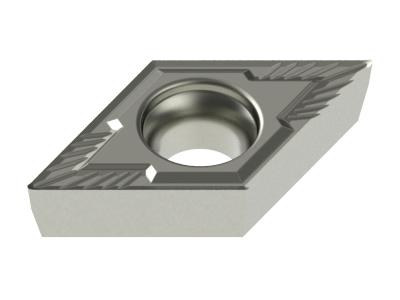

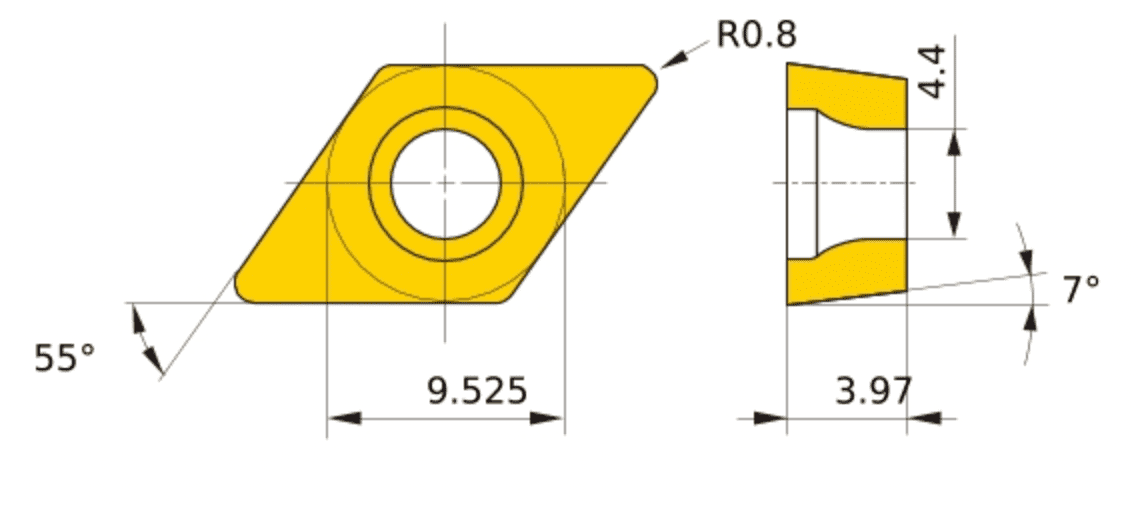

Turning & Boring | DCGT11T308

Turning & Boring | DCGT11T308
More Info..|Enquire about this product

$14.50 NZD
Approx $8.61 USD Excl GST Product Code: 915 DCGT11T308

  • Style: DCGT11T308
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 3.97mm

Description:

Insert included angle - 55°
For general machining on aluminium and non-ferrous materials.





Enquire about this product

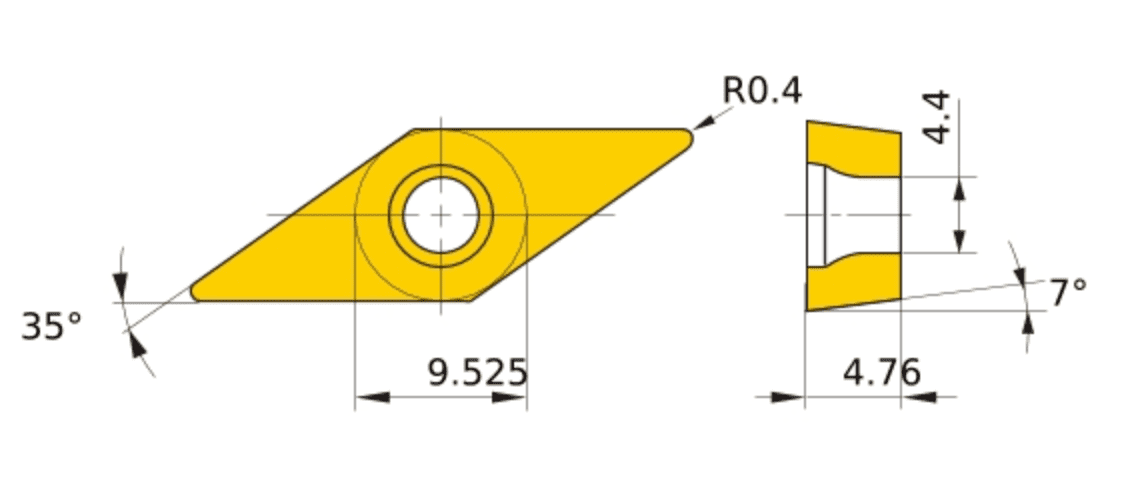

Turning & Boring | VCMT160404

Turning & Boring | VCMT160404
More Info..|Enquire about this product

$14.50 NZD
Approx $8.61 USD Excl GST Product Code: 915 VCMT160404

  • Style: VCMT160404
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 35°
For semi-finishing and finishing on steel, cast steel and stainless steel.





Enquire about this product

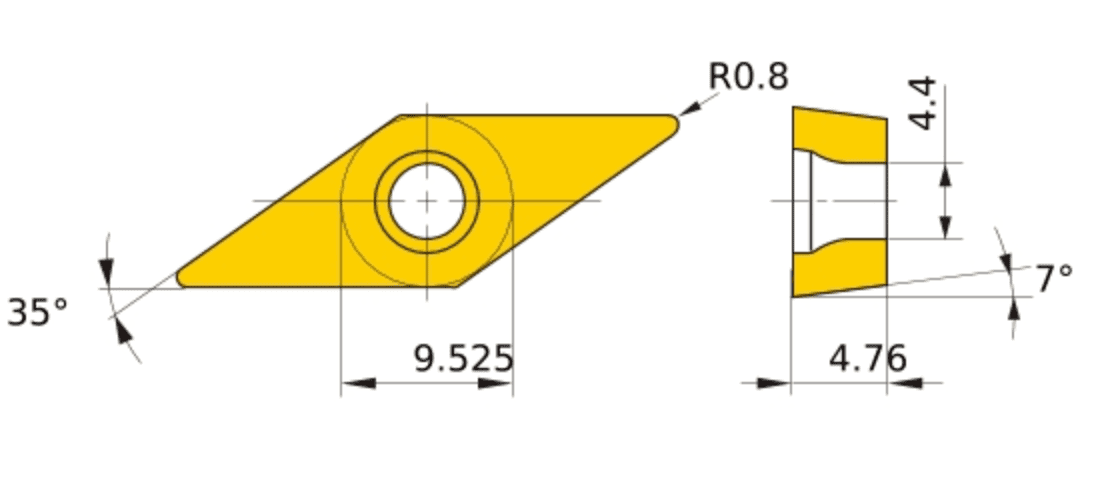

Turning & Boring | VCMT160408

Turning & Boring | VCMT160408
More Info..|Enquire about this product

$14.50 NZD
Approx $8.61 USD Excl GST Product Code: 915 VCMT160408

  • Style: VCMT160408
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 35°
For semi-finishing and finishing on steel, cast steel and stainless steel.





Enquire about this product

Turning & Boring | SNMG120408

Turning & Boring | SNMG120408
More Info..|Enquire about this product

$14.18 NZD
Approx $8.42 USD Excl GST Product Code: 915 SNMG120408

  • Style: SNMG120408
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 90°
For general purpose machining.


Enquire about this product

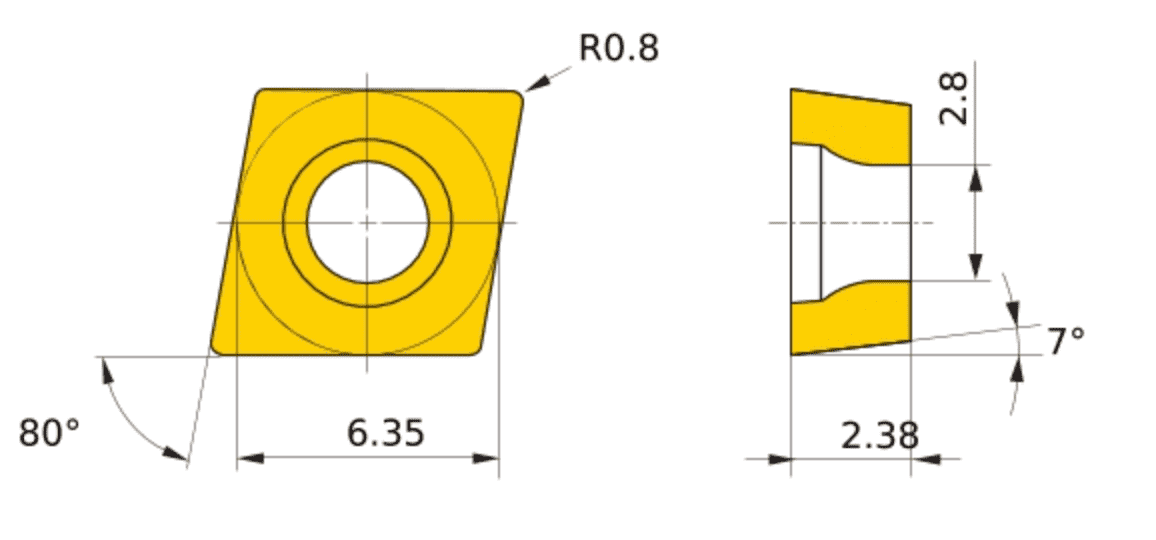

Turning & Boring | CCGT060208P

Turning & Boring | CCGT060208P
More Info..|Enquire about this product

$13.58 NZD
Approx $8.07 USD Excl GST Product Code: 915 CCGT060208P

  • Style: CCGT060208P
  • Size: Corner radius - 0.8mm
  • Depth: Insert thickness - 2.38mm

Description:

Insert included angle - 80°
For prolonged machining on non-ferrous materials.



Enquire about this product

Turning & Boring | CCMT120404

Turning & Boring | CCMT120404
More Info..|Enquire about this product

$13.58 NZD
Approx $8.07 USD Excl GST Product Code: 915 CCMT120404

  • Style: CCMT120404
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 80°
For general purpose machining.




Enquire about this product

Turning & Boring | CCMT120404J

Turning & Boring | CCMT120404J
More Info..|Enquire about this product

$13.58 NZD
Approx $8.07 USD Excl GST Product Code: 915 CCMT120404J

  • Style: CCMT120404J
  • Size: Corner radius - 0.4mm
  • Depth: Insert thickness - 4.76mm

Description:

Insert included angle - 80°
For semi-finishing and finishing on steel, cast steel and stainless steel.







Enquire about this product

Show More
Email Address
Message
